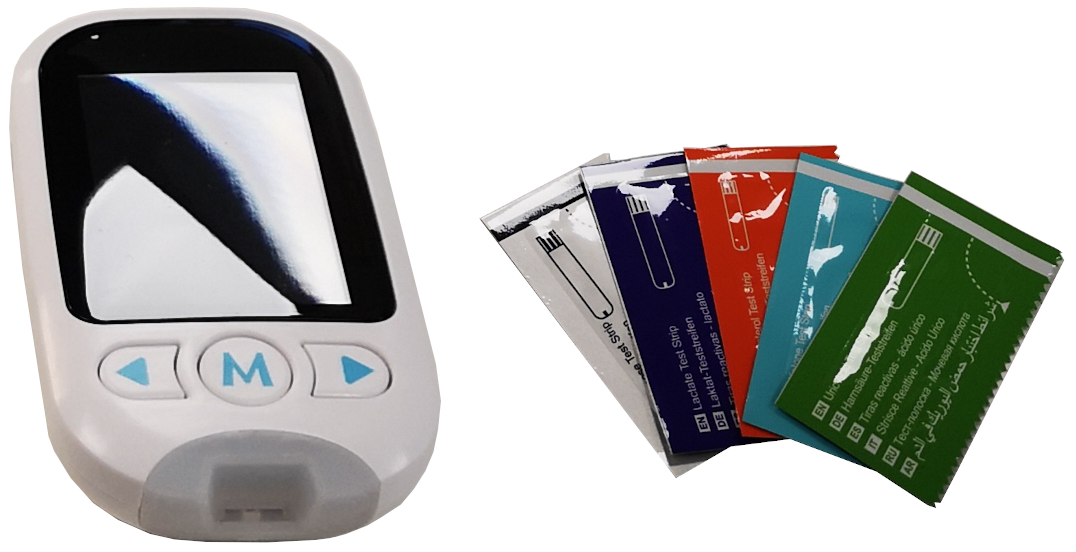

Simple Simon® GLU [ZAF-140-1-1] – trådlös B-glukos, B-ketoner, Laktat, Total kolesterol och Urinsyra mätare

Artikelnr: ZAF-140-1-1 Kategori:

Beskrivning

Simple Simon® GLU [ZAF-140-1-1] är en liten och smidig fem parameters mätare, som med olika stickor mäter B-glukos, B-ketoner, Laktat, Total kolesterol och Urinsyra. Mätaren är handhållen, batteridriven, samt uppkopplingsbar via Zafenas arbetsstation ZAF-552.

Mer information

Vikt 0.290 kg
Dimensioner 18 × 13 × 6 cm
Communication

BLE – Bluetooth Low Energy.

Ketone warning

Yes

Power source

2 x AAA Batteries

Memory capacity

1000 sets (meter) / Unlimited sets (connected to ZAF-552)

Day average (Glucose)

7, 14, 21, 28, 60 and 90 days

Daily alarms

4 daily alarms

Dimensions

10,2 (L) x 5,7 (W) x 2,2 (H) cm

Weight

57 g. without battery

Operating conditions

Temperature: +8°C to +45°C
Humidity: 10% to 90% R.H.

Storage contitions

Temperature: -20°C to +60°C (meter), +2°C to +30°C (Strips)

Glucose test strip

Product: ZAF-143-2
Enzyme type: GDH-FAD
Sample size: 0,5uL
Reaction time: 5 sec.
Measurement range: 10-800 mg/dl (0,56-44,4 mmol/L)
Hematocrit range: 0% – 70%
Precision: SD <5mg/dl (0,278 mmol/L), CV <5% at 100mg/dl (5,55 mmol/L)
Accuracy: +/- 15 mg/dl if < 100 mg/dl, +/-15% if >100 mg/dl

Ketone test strip

Product: ZAF-143-3
Enzyme type: HBD
Sample size: 0,8uL
Reaction time: 10 sec.
Measurement range: 0,1 – 8,0 mmol/L
Hematocrit range: 10% – 70%
Precision: < 1 mmol/L SD < 0,1 mM, > 1 mmol/L, CV < 7,5%

Lactat test strip

Product: ZAF-143-5
Sample size: 0,8uL
Reaction time: 5 sec.
Measurement range: 0,3 – 22 mmol/L
Hematocrit range: 10% – 65%
Precision: ≤ 3 mmol/L SD < 0,3 mM, > 3 mmol/L, CV < 7,5%

Total cholesterol test strip

Product: ZAF-143-4
Sample size: 3,0uL
Reaction time: 60 sec.
Measurement range: 100 – 400 mg/dl
Hematocrit range: 20% – 60%
Precision: CV < 7,5%

Uric acid test strip

Product: ZAF-143-6
Sample size: 0,5uL
Reaction time: 15 sec.
Measurement range: 3 – 20 mg/dl (178 – 1190 μmol/L)
Hematocrit range: 20% – 60%
Precision: CV ≤ 5 mg/dl, SD < 0,5 mg/dl; > 5mg/dl, CV < 7,5% (≤297 μM, SD 297 μM, CV < 7,5%) (≤0,29mM, SD0,29mM, CV<7,5%)
