POC-Workstation [ZAF-552] – workflow automation and Personal Health Gateway

Zafena POC Workstation is a flexible, workflow automation, workstation that connects all desired medical meters , if the meter can communicate via cable or Bluetooth, to a common user interface. The workstation stores response history and can print the result on a receipt. The workstation can also communicate bidirectionally with journal and lab data systems, which means that a workstation can, for example, receive a lab referral and send the result to the patient record.

The product POC-Workstation ZAF-552 consists of: ZAF-502 Zafena Plus Screen (IT-Unit / The new connector), ZAF-505-2 Software on micro sdcard, ZAF-504 1D barcode-scanner, ZAF-508 USB cable, ZAF-509 network cable, ZAF-511 Power adapter and ZAF-130-13 Paper roll.


Zafena Plus skärm Hand-out EN 20200313

Zafena Plus skärm Hand-out SE 20200313

ZAF-552 Manual SE 20190710

Remote Patient Monitoring Project – Self-testing; Moving the hospital bed to the patient’s home

Zafena POC-Workstation – Homecare Project Pitching Deck 20200518

Zafena POC-Workstation – Workflow with cloud-based systems 20200804

Zafena POC- Workstation in Region Norrbotten PNA days 2019

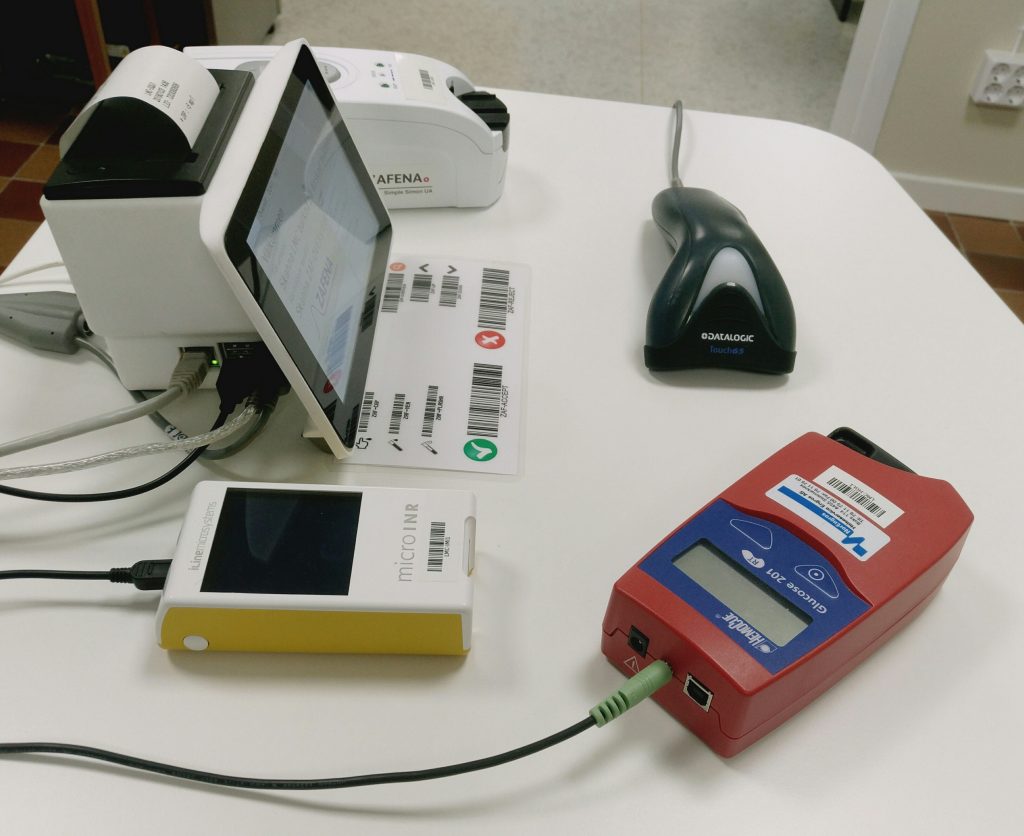

POC-Workstation [ZAF-552], the “new connector” or “Zafena Simple Simon® Plus Screen” as it is also called, digitizes measurement results from meters / instruments that do not meet the market’s high demands for IT functionality and connection to central systems.

Thinking modularly gives greater flexibility and enables the maintenance of the meters / instruments, which the staff already know and are trained on. This opens the door to keep the instruments as long as they work and measure properly, which is good for the environment as well as the economy.

A modular solution also provides the opportunity to procure simpler meters / instruments that measure correctly, but do not meet today’s escalating IT requirements. The world opens up to save money by not having to buy IT-advanced instruments, as long as the meter gives its result digitally when measurement is completed, it can be connected to the Zafena POC-Workstation. This can be done via RS232 (Printer port), USB, Ethernet, Wifi or Bluetooth.

Your needs control the optimization of your workflow

POC-Workstation is a Personal Health Gateway (PHG)

With the Zafena POC Workstation, only a single connection to an existing journal or lab computer system is required. Everything connected to the workstation will automatically be connected to the central receiver system. Zafena POC-Workstation can be set to communicate via all standardized protocols, for example ASTM, Poct1A, HL7, FHIR and xml. The communication from the workstation to the central systems is recommended to be wired via Ethernet, but can also be done via Wifi or the mobile network. The advantages of having only one type of connection to all central systems are not only cost savings in the investment, but also savings in the administration of the entire instrument fleet.

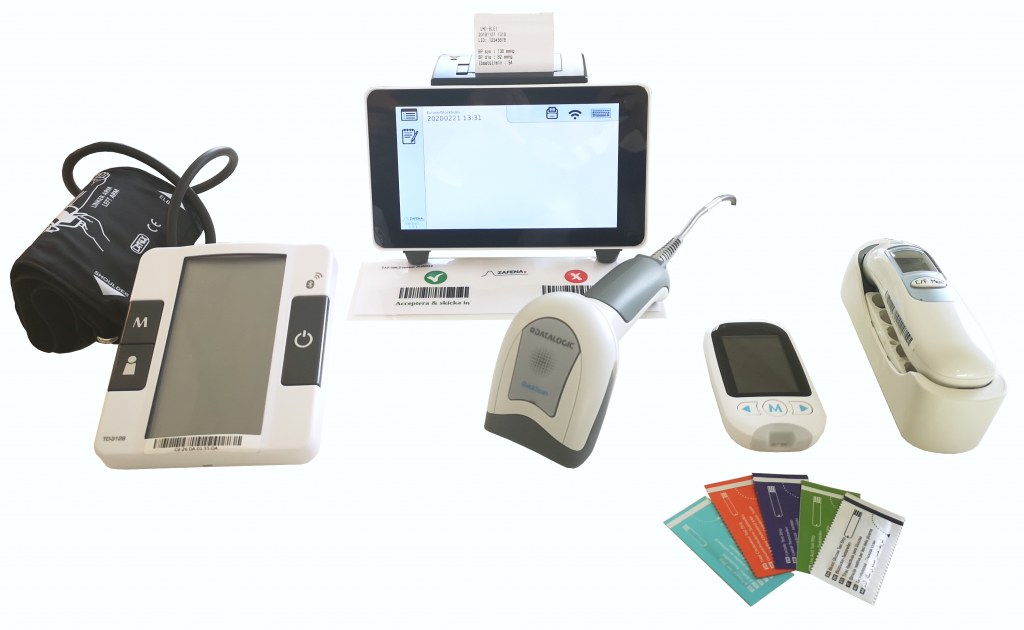

Supports wireless Personal Health Devices (PDH)

The market for small, smart instruments, meters and sensors with Bluetooth connection is growing. The Zafena POC-Workstation (>version 1.5.2) supports, PCHAlliance Continua Personal Health Devices (PHD), Bluetooth, which broadens the product’s usefulness, even outside the lab, such as in doctors’ offices, wards, pharmacies and in occupational health care.

Monitoring of patients cared for at home is an area where care seeks with light and lantern for solutions. In order for IT in healthcare to provide savings, such a solution should not generate parallel systems to the existing ones that are already used today by healthcare professionals and handle patient data. Such a solution should be integrated into existing systems to avoid unnecessary administration costs that come with new parallel systems. The Zafena screen connects to existing systems, without the need for data to pass any special solutions. With the Zafena screen, it can be done from a patient’s home, without relying on any app on the patient’s mobile phone or the patient’s personal home network working.

Existing central hospital systems can be used together with POC-Workstation for monitoring the patient at home

Additional information

Weight 1.6 kg
Dimensions 11 × 20 × 12 cm
integrated Zafena

Simple Simon PT (INR Owren)
Simple Simon UA (Urin)

integrated Hemocue

201+ Hb (Hb)
201+ Glucose (Glukos)
WBC Diff (Vita 6-part)

integrated EKF

Hemo Control (Hb)
Diaspect (Hb)
Diaspect Tm (Hb)
Quo-Test (HbA1c)

integrated Machery-Nagel

Uryxxon Relax (Urin)

integrated Greiner

Vacuette SRT/10 (ESR)

integrated Elitech

MicroSed R (ESR)

integrated Terumo

V10 (ESR)

integrated Siemens

DCA Vantage (HbA1c, Alb/Krea)
Clinitek Status (urin)

integrated Taidoc

TD-4216 (Glukos, Keton, Laktat, Kolesterol, Urinsyra)
TD-4289 (Glukos, Keton, Laktat)
TD-4277 (Glukos, Keton, Laktat)
TD-3128B (Blodtryck)
TD-1107 (Öron temperatur)
TD-2555 (Vikt)
TD-8255 (Puls Oximeter)

integrated BerylScale

BYH03 (Längd, vikt, BMI)

integrated Eurolyser

The Cube (HbA1c, CRP, Ferretin, INR Owren etc..)
Solo (VET)

integrated Orion

QuickReadGo (CRP, Hb)
MicroINR (INR quick)

integrated LumiraDx

Lumira Tek C (HbA1c, CRP)
MicroPoint (INR quick)

integrated ITC

Protime INRythm (INR Owren)

integrated Bobitech

i-Chroma (CRP)

integrated Boule

H400 (Hematologi VET)
C200 (Multiparameter VET)

integrated Abaxis

Vetscan VS2 v1 (Multiparameter VET)
Vetscan VS2 v2 (Multiparameter VET)

integrated Horiba

scil Vetabc Plus (Hematologi VET)

integrated Fujifilm

Dri-Chem Immuno AU10N (VET)

integrated Omron

HEM-9210T (Blodtryck)

integrated HemCheck

Helge H10 (Hemolys detektion)

integrated Roche

CoaguCheck INRange (INR quick)

integrated Abbott

Afinion 2 (HbA1c, lipidpanel, ACR, CRP)
